Model LG 580.73184 300 WINDOW RAC for Sears – Common Parts & Diagrams

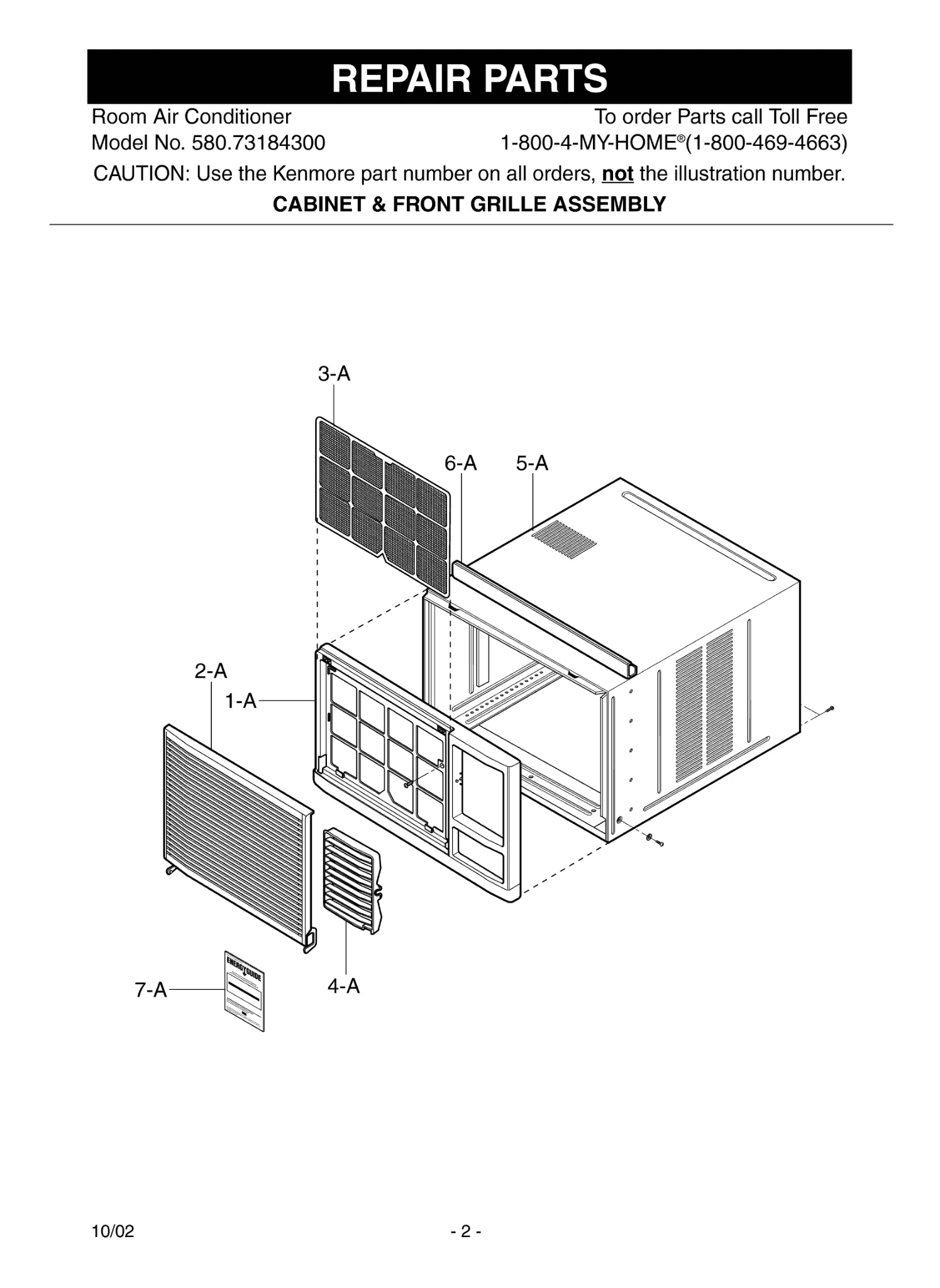

Diagram 0

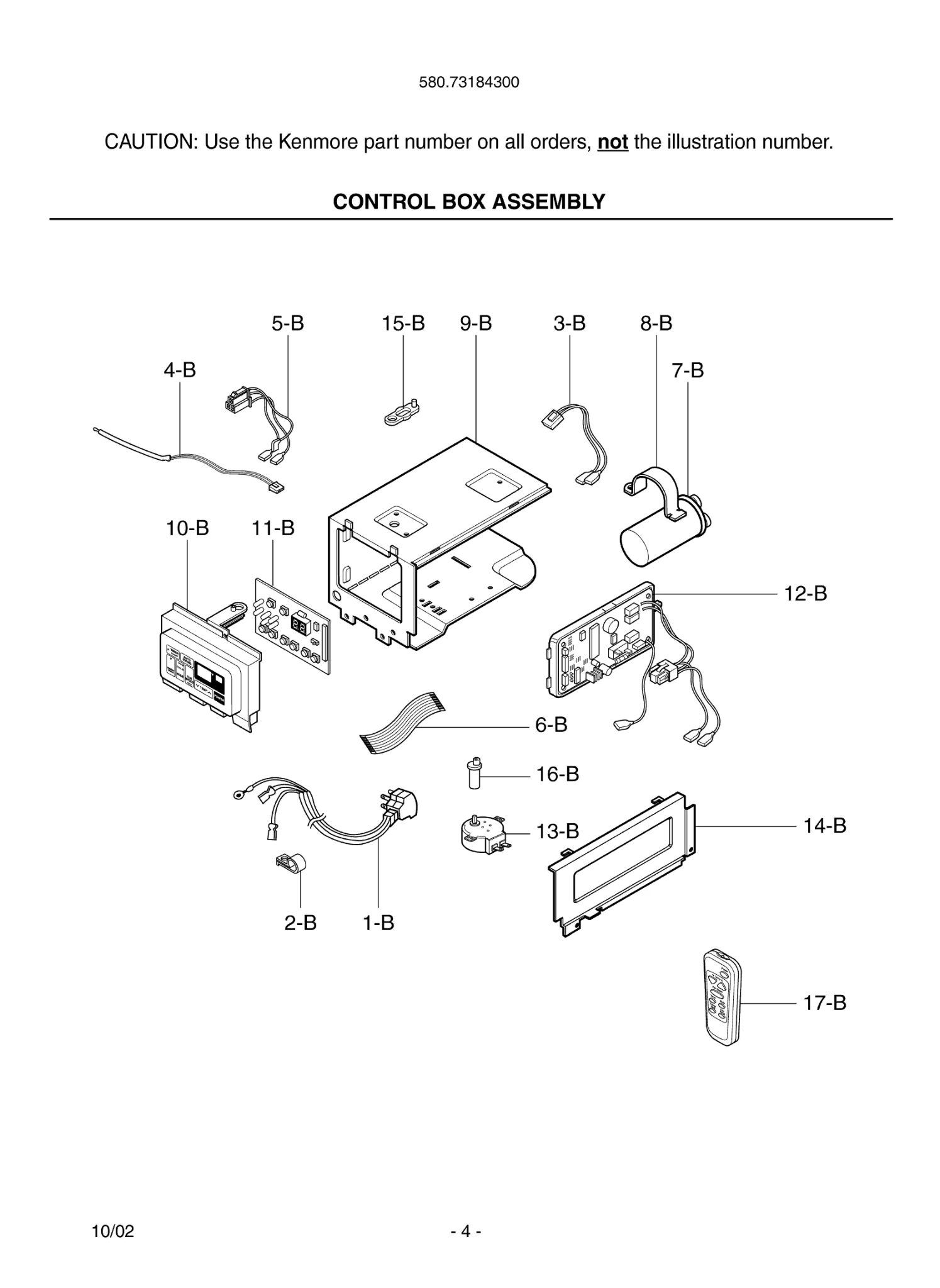

Diagram 1

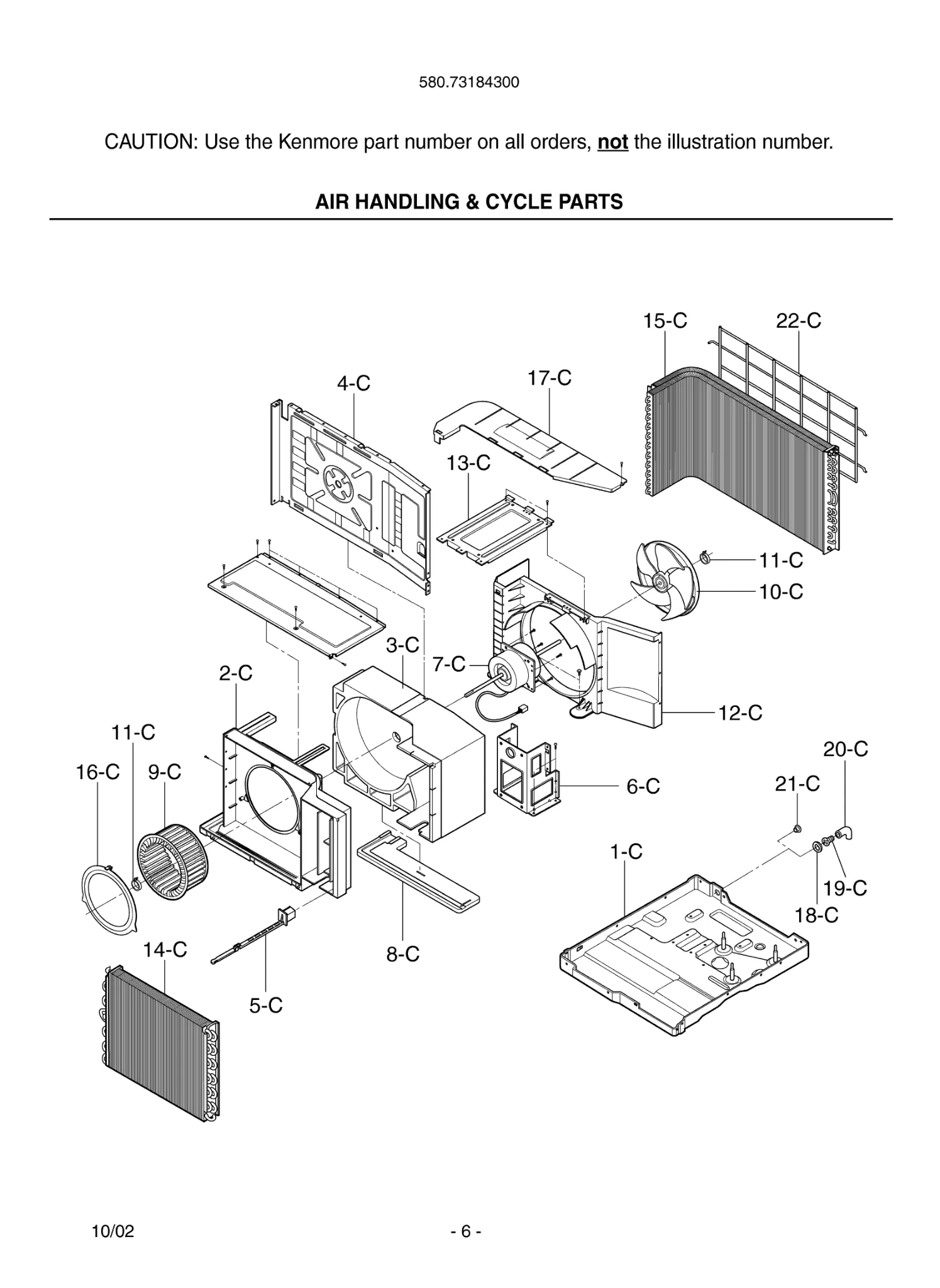

Diagram 2

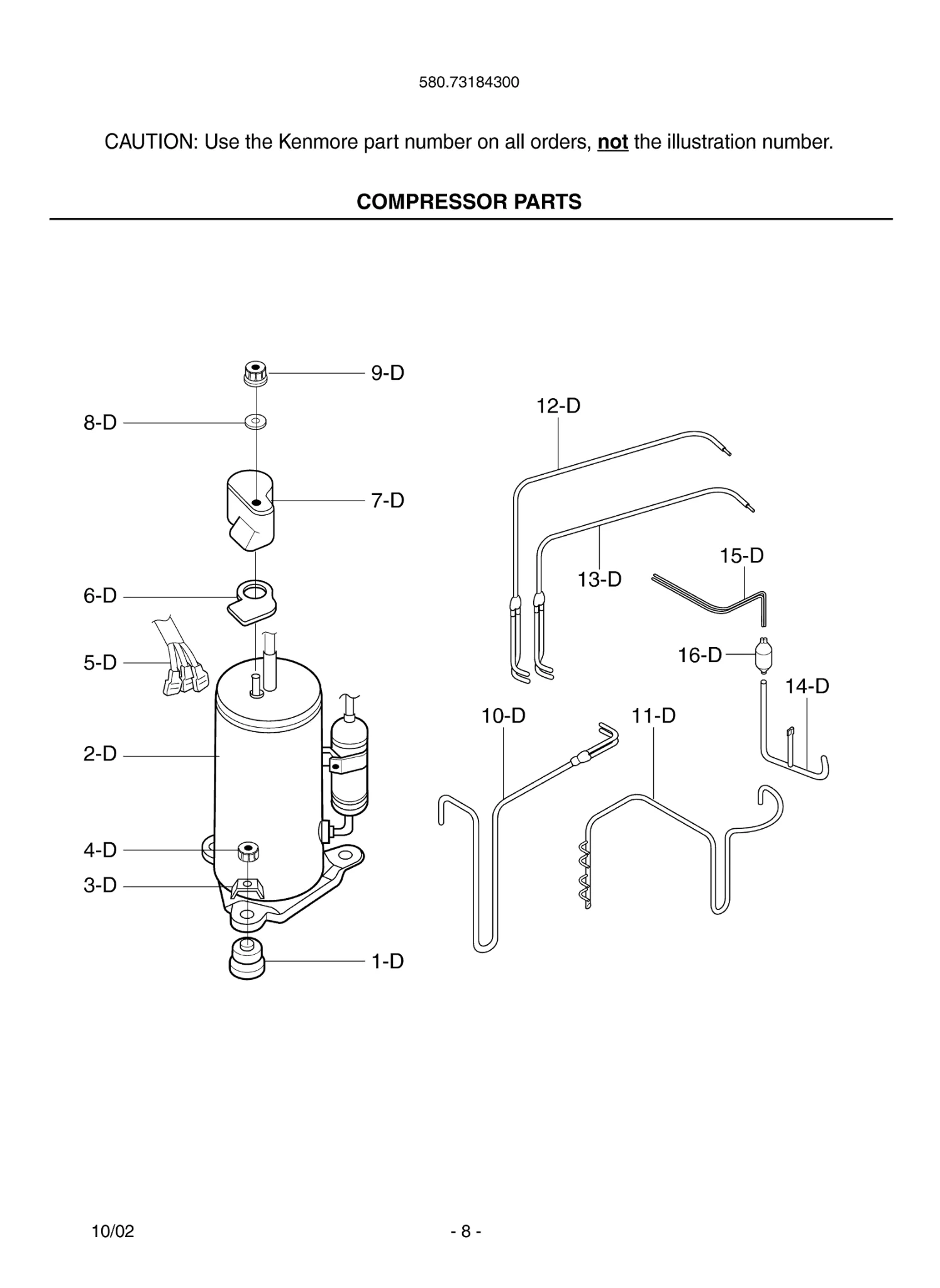

Diagram 3

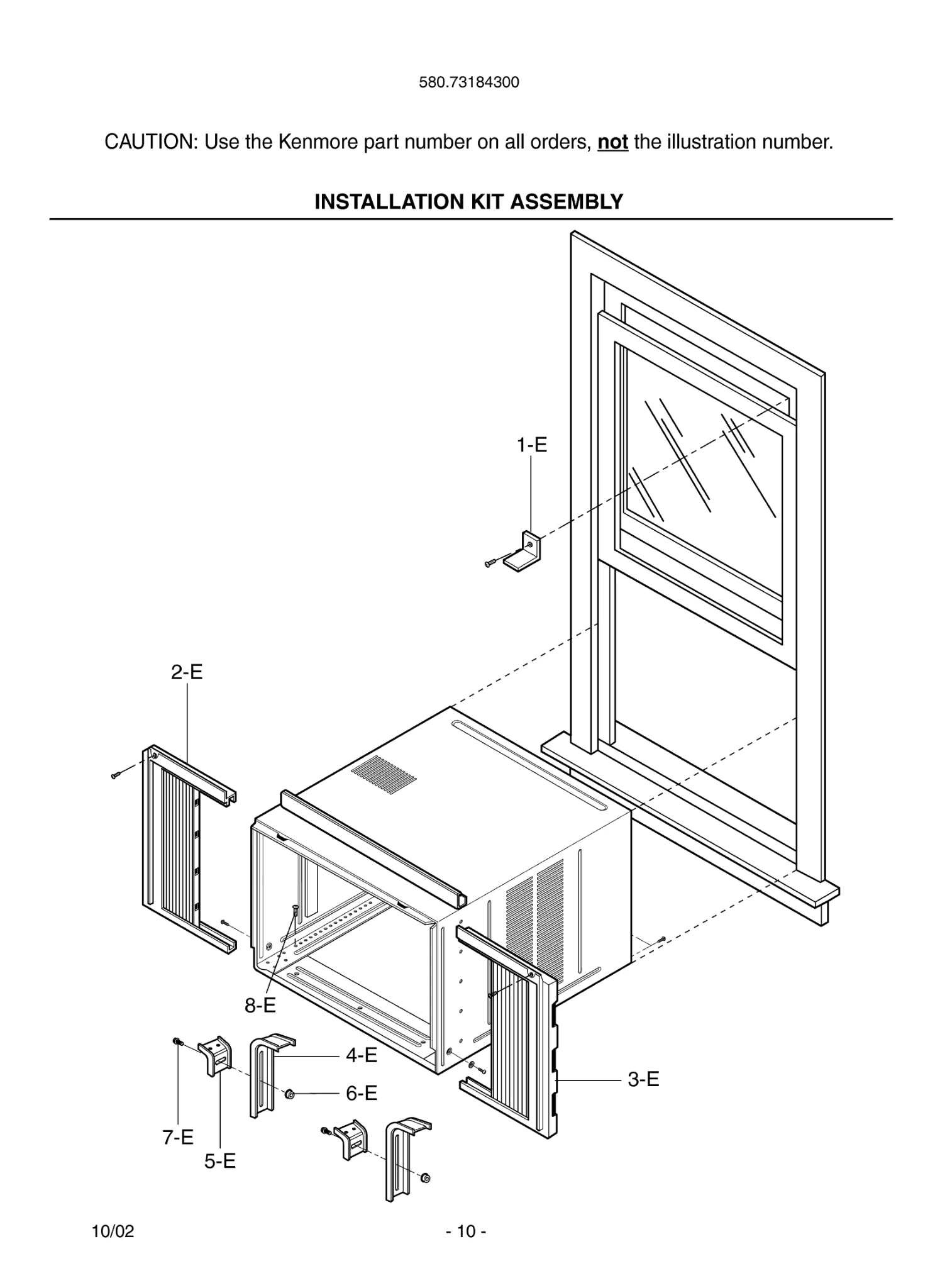

Diagram 4
Common parts from model LG 580.73184 300 WINDOW RAC for Sears
1-C
BASE ASSY,SINGLE LGE 3041A30002K Contact Us For Availability
1-D
BUSH ANTI VIBRATION QJ-COMP(96 LGE 4H00982C Contact Us For Availability
2-B
CLIP CORD, GA-1830FC LGE 4H01762A Contact Us For Availability
2-C
AIR GUIDE LGE 5238AR1584A Contact Us For Availability
2-D
COMPRESSOR SET LGE 2520UMNK2BA Contact Us For Availability
3-A
FILTER(MECH) LGE 5230AR1327A Contact Us For Availability
3-B
LEAD WIRE ASSY LGE 6631AR3809F Contact Us For Availability
3-C
SCROLL LGE 3072AR1583A Contact Us For Availability
3-E
CURTAIN ASSY LGE 4959AR3402F Contact Us For Availability
4-A
VANE LGE 5990AR2972A Contact Us For Availability
4-B
Thermistor Assembly,NTC LGE EBG60661401 Contact Us For Availability
4-E
SUPPORT BRACKET GA-1834FC PIGE LGE 3H01479D Contact Us For Availability
5-A
CABINET ASSY,SINGL LGE 3091AR6057C Contact Us For Availability
5-B
LEAD WIRE ASSY LGE 6877A20002A Contact Us For Availability
5-D
LEAD WIRE ASSY LGE 6877A20002B Contact Us For Availability
5-E
SILL BRACKET PIGEON GRAY GA-12 LGE 3H01395C Contact Us For Availability
6-A
GUIDE,UPPER LGE 2H00858E Contact Us For Availability
6-B
CABLE,FLAT LGE 6850A90001H Contact Us For Availability
6-C
MOUNT,MOTOR LGE 4960AR1596A Contact Us For Availability
6-D
GASKET LGE 4986U-L001D Contact Us For Availability
7-A
LABEL,ENERGY LGE 3850A20423W Contact Us For Availability
7-C
MOTOR ASSY,AC LGE 4681AR6033K Contact Us For Availability
8-B
CLAMP CAPACITOR MJ/GA-1014LCM LGE 4H00442F Contact Us For Availability
8-C
INSULATION,PU LGE 3040AR6160A Contact Us For Availability
8-D
GASKET-NUT <GA-0711HCR/0712HCM LGE 4H01058A Contact Us For Availability
10-B
PANEL,CONTROL LGE 3720A20018A Contact Us For Availability
10-C
FAN LGE 5900AR1508A Contact Us For Availability
10-D
TUBE ASSY,DISCHARGE LGE 5211A30066A Contact Us For Availability
11-B
PWB(PCB) ASSEMBLY,DISPLAY LGE 6871A20209A Contact Us For Availability
11-D
TUBE ASSEMBLY,SUCTION SINGLE LGE 5211A20204C Contact Us For Availability
12-C
SHROUD LGE 4998AR1597A Contact Us For Availability
12-D
TUBE ASSEMBLY,EVAPORATOR IN LGE 5211A20433B Contact Us For Availability
13-B
Motor,AC LGE 2H01102K Contact Us For Availability
13-D
TUBE ASSEMBLY,EVAPORATOR IN LGE 5211A20434B Contact Us For Availability
14-C
Evaporator Assembly,First LGE 5421A90048A Contact Us For Availability
14-C
EVAPORATOR ASSEMBLY,FIRST LGE 5421A20059F Contact Us For Availability
14-D
TUBE ASSEMBLY,CONNECTOR LGE 5211AR7059W Contact Us For Availability
15-C
CONDENSER ASSY,BEND LGE 5403A20004F Contact Us For Availability
16-C
ORIFICE LGE 4948A30006A Contact Us For Availability
16-D
DRIER ASSEMBLY LGE 5851A30001L Contact Us For Availability
16-D
DRIER ASSEMBLY LGE 5851A30001F Contact Us For Availability
17-B
Remote Controller Assembly LGE 6711A90025D Contact Us For Availability
17-B
REMOTE CONTROLLER ASSY LGE 6711A20035D Contact Us For Availability
20-C
PIPE ELBOW GA-1834FC/1835FC/21 LGE 4H00261A Contact Us For Availability
21-C
CAP, HOLE GA-0711HCR/GA-071 LGE 4H02023A Contact Us For Availability
22-C
GRILLE,REAR LGE 3530A20042D Contact Us For Availability
× ![]()
